SUNCORE HV SERIES
COMMERCIAL & INDUSTRIAL
With advanced 1.5C technology, the Greenrich battery delivers higher power output when it is needed most.
Features
6000
Cycle WARRANTY
Ultimage Safety
Cylindrical Cells
1.5C
Cell Discharge Rate
SPECIFICATION

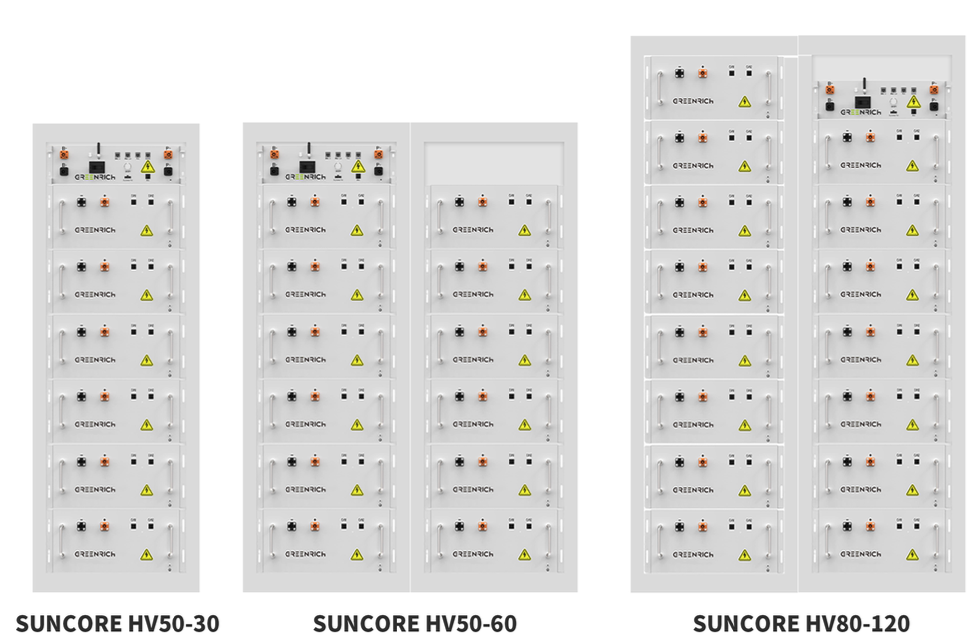

| System | SUNCORE HV 50-30 | SUNCORE HV 50-60 | SUNCORE HV 80-120 |
|---|---|---|---|
| System Nominal Voltage (V) | 307.2 | 614.4 | 768 |
| System Energy (kWh) | 29.67 | 59.35 | 120.1 |
| Nominal Charge Current (A) | 80 | 80 | 125 |
| Nominal Discharge Current (A) | 120 | 120 | 190 |
| Operating Temperature ( ℃ ) | Charge: -10~55 / Discharge: -20~60 | ||
| Communication Type | RS485, CAN | ||
| Operating Humidity | 5~95% RH | ||
| Cooling Mode | Natural air cooling | ||
| IP Rating of Enclosure | IP20 | ||
| Parallelizable | Up to 10, 300kWh | Up to 10, 600kWh | Up to 10, 1200kWh |
| Dimension (W*D*H) (mm) | 540*550*1695 | 1020*550*1695 | 1020*550*2030 |
| Approximate Weight (kg) | 350 | 700 | 1200 |
| Installation | Rack Mounting | ||
| Storage Temperature (℃ ) | -10~45 | ||

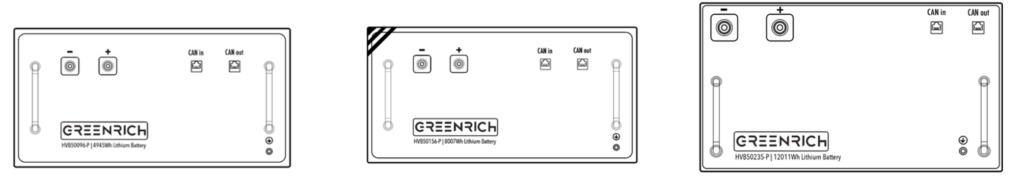

| Battery Module | HVB50096-P | HVB50096-P | HVB50156-P |
|---|---|---|---|
| Cell Chemistry | LiFePO4 Cylindrical cells | ||
| Module Energy (kWh) | 4.945 | 4.945 | 8.007 |
| Module Nominal Voltage (V) | 51.2 | 51.2 | 51.2 |
| Module Capacity (Ah) | 96.6 | 96.6 | 156.4 |
| Battery Module Qty in Series | 6 | 12 | 15 |
| Weight per Pack (kg) | 47 | 47 | 69 |
| Pack Dimension (W*D*H) (mm) | 438*536*221 | ||

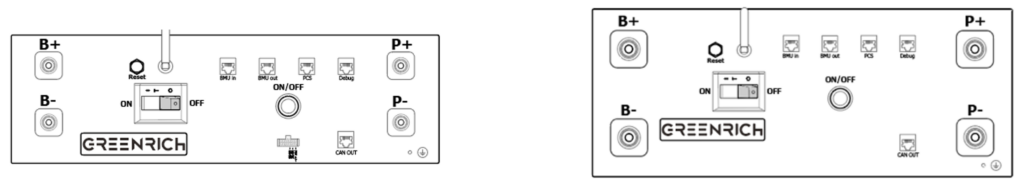

| High Voltage Control Box | HVCB125-P | HVCB125-P | HVCB200-P |
|---|---|---|---|
| Operating Voltage (V) | 80~1000 | 80~1000 | 80~1000 |
| Dimension (W*D*H) (mm) | 438*478*133 | 438*478*133 | 438*478*221 |
| Approximate Weight (kg) | 14 | 14 | 24 |
