Industrial & Commercial High Voltage Battery System
Effective and efficient of power supply
Empowering Industries, Energizing Innovation

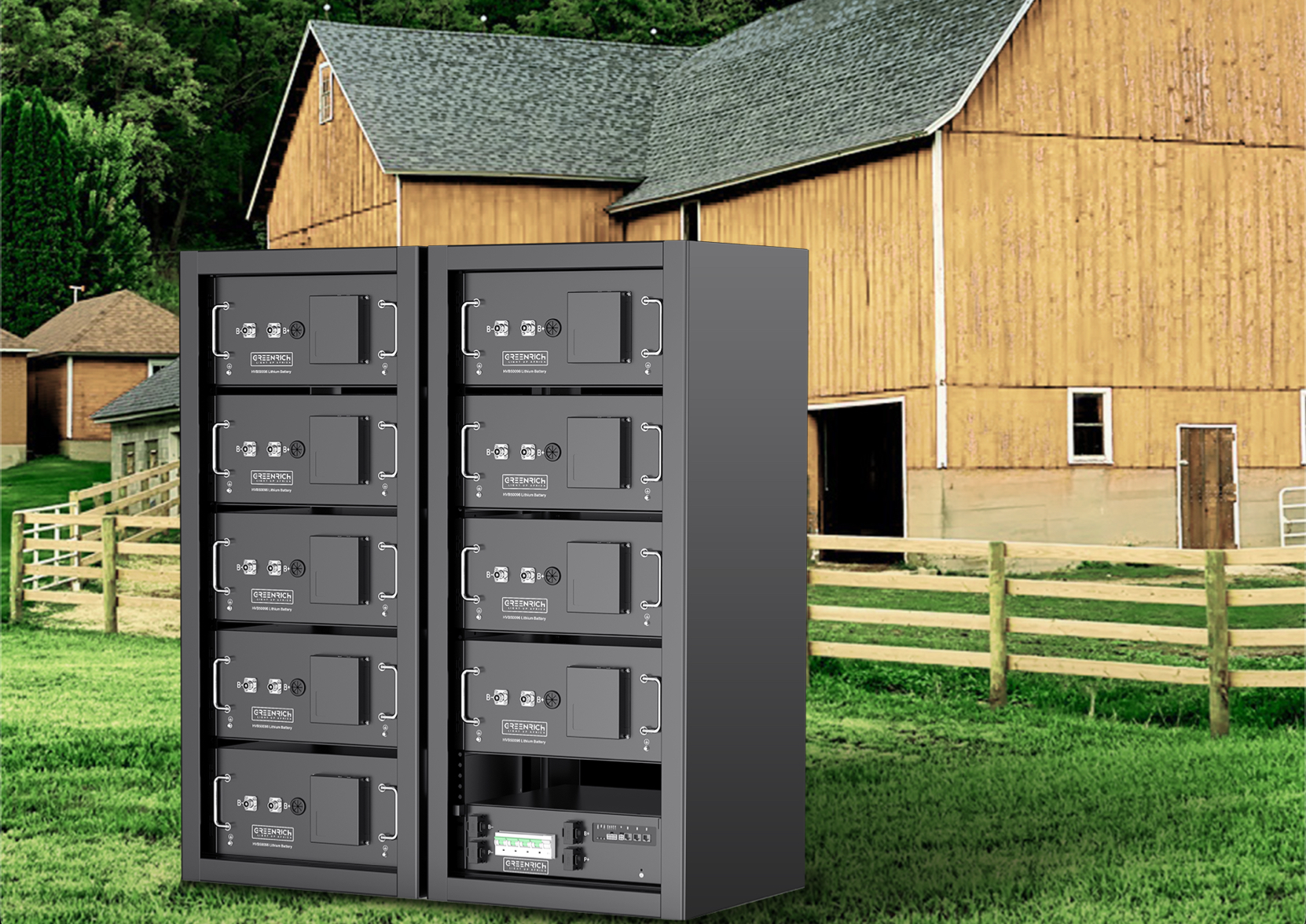

HV IS001 - The Pinnacle of High-Voltage Battery Systems!
The HV IS001 High-Voltage Battery System is a cutting-edge energy storage solution designed for industrial and commercial applications. It provides reliable and efficient power storage for high-demand environments. The IS001 offers high voltage capabilities, allowing for enhanced energy storage capacity and optimised performance.
Discharge Rate
1.5C
DC Output
204.8V - 768V
Capacity
20 - 500kWh
Functions
High current detection accuracy, two detection loop used
Compatible with 204.8V-768Vdc system

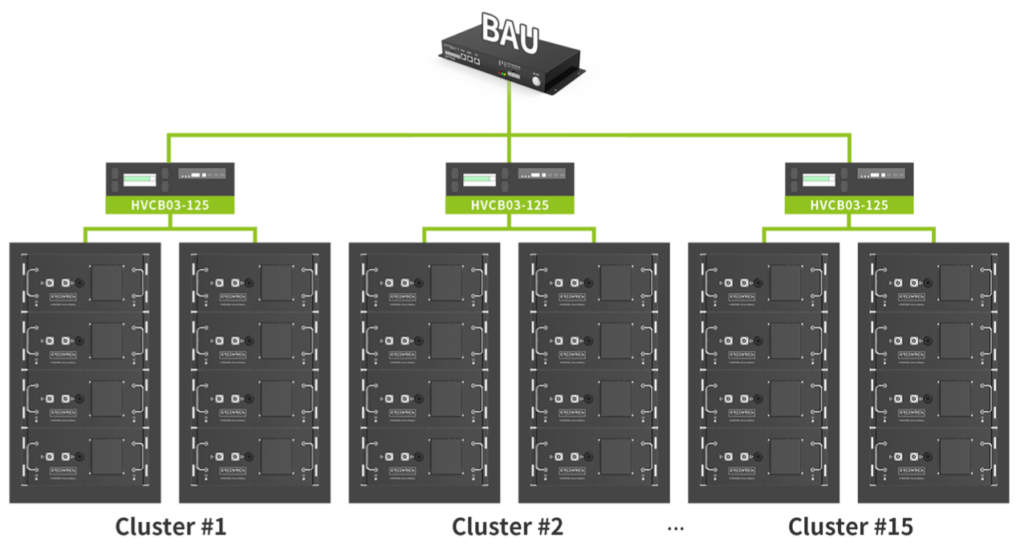

Master and slave design, more stable and safer operation to maintenance system
Reliable communication and Cloud display of data
Support most PCS/PWG in the market, like Sinexcel, Megarevo, Goodwe and so on
Support remote monitoring and upgrading through wifi or 4G mode
Electrical Parameters
Battery Type : LiFePO4
Nominal Voltage per battery: 51.2V
Capacity : 95500mAh / 4946Wh
Working Voltage Range per battery: 46.4V – 56.8V
Work Voltage Range per Cluster: 204.8V – 768Vdc
100A @continuous, 125A Max. – per cluster
Compatibility
Deye, SUNSYNK, Growatt, LUX Power, Goodwe, Voltronic, KODAK, Axpert, Victron etc.
