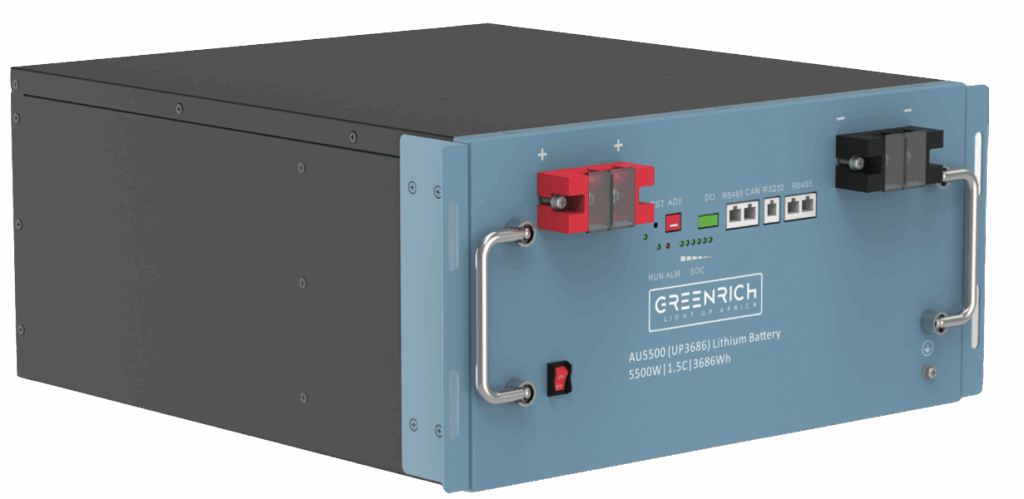

UP3686
5500W | 3.68kWh
The UP3686 is a low-voltage battery system with a high-capacity design, ideal for residential and commercial energy storage applications. Up to 15 units can be connected in parallel to scale effortlessly and meet the demands of more users.
Features
5500W
POWER
1.5C
DISCHARGE RATE
3.68kWh
Smart BMS
Specifications
| UP3686 | Specification |
|---|---|
| Battery Type | LiFePO4 |
| Rated Voltage | 51.2V |
| Nominal Capacity | 72Ah | 3.686kWh |
| Parallel Max. | 15 |
| Dimension W×H×D (mm) | 438 x 529 x 220.6 |
| Weight | about 42kg |
| Warranty | ≥6000, 10 Years |
