ALL-IN-ONE Containerized
Energy Storage System
All-IN-ONE ENERGY STORAGE SYSTEM
- AC System: PCS, AC Cabinet
- DC System: Cell, Module, Battery Rack, High Voltage controller box
- Auxiliary System: Air Conditioning, Fire Protection
- Control System: BMS, EMS
SYSTEM INTRODUCTION
Greenrich provides an extremely safe and reliable containerized energy storage system solution, offering an all-in-one integration of battery packs, PCS (Power Conversion System), STS (Static Transfer Switch), ATS (Automatic Transfer Switch),BMS (Battery Management System), fire protection system, and air conditioning system. Through the EMS (Energy Management System), it coordinates the efficient operation of each component, ensuring the reliability of power supply to customers.The entire system is designed in a modular configuration, facilitating transportation, installation, and maintenance.
| Product Model | Container | Rated AC power | Nominal Capacity | Configuration |
|---|---|---|---|---|
| GRHV1000‑1024 | 20HC (DC+AC) | 1000 kW | 1024 kWh | 8×GR125 + 8×RACKs |
| GRHV1280 | 20HC (DC) | 1280 kWh | 10×RACKs |

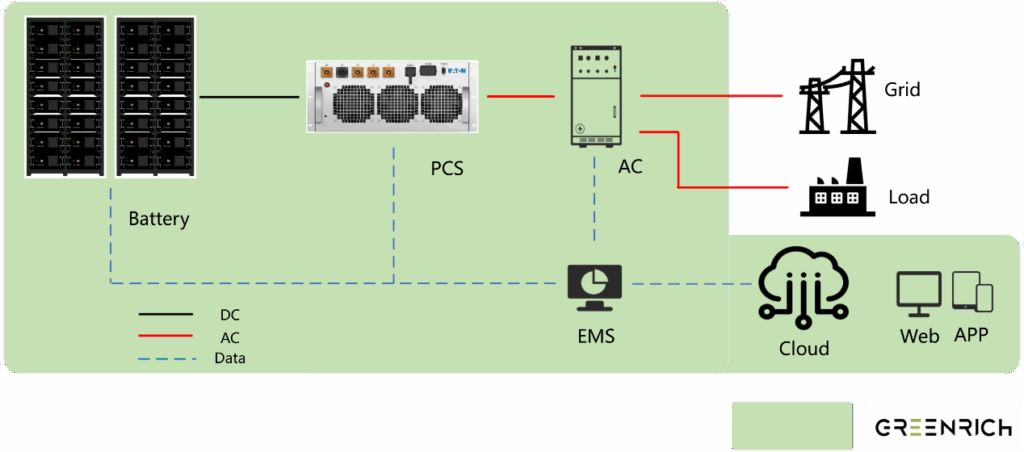

System Configuration

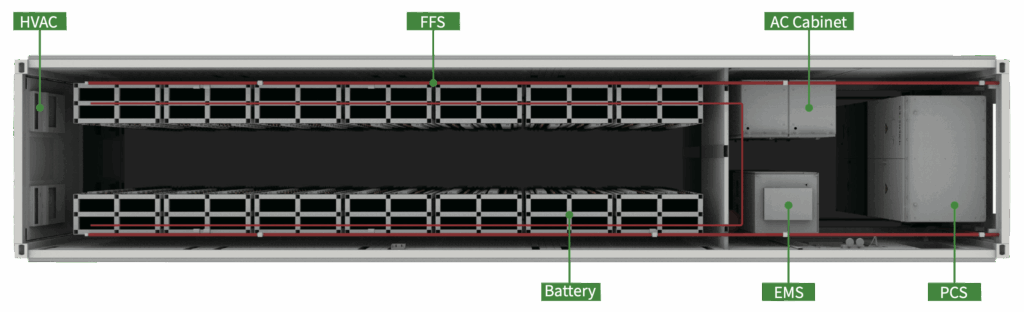

Key Components
ESS parameters
| Model | GRHV1000‑1024 | GRHV1280 |
|---|---|---|
| DC | ||
| Battery Input | ||
| Battery type | Cylindrical LFP | |
| Battery pack | 51.2V / 156Ah | |
| Battery Rack | 16 | 16 |
| Battery per String | 8 | 10 |
| Rated Capacity | 1024 kWh | 1280 kWh |
| Rated Voltage | 819.2 Vdc | |
| Battery Voltage range | 716 Vdc – 910 Vdc | |
| Communication | CAN, Ethernet, RS485 | |
| AC | ||
| AC Side (On Grid) | ||
| Max Output Power (kVA) | 1200 | 1200 |
| Rated Output Power (kW) | 1000 | 1000 |
| Rated Voltage (V) | 400 | 400 |
| Voltage Range (V) | 320 – 460 | 320 – 460 |
| Rated Current (A) | 190 | 190 |
| Rated Frequency (Hz) | 50/60 | 50/60 |
| Frequency Range (Hz) | 44–55 / 55–65 | 44–55 / 55–65 |
| THDi | <3% | <3% |
| Power Factor | ‑1.0 ~ 1.0 | ‑1.0 ~ 1.0 |
| Isolation | Transformerless | Transformerless |
| Wiring Type | 3P3W+PE | |
| Parameters | ||
| Dimension (W×D×H) (mm) | 6058 × 2438 × 2591 | 6058 × 2438 × 2591 |
| Weight of the whole system | 15 ton | 18 ton |
| Degree of protection | IP54 | |
| Operation Temperature Range | ‑10 ~ 40°C | |
| Relative Humidity | 0–95% (non‑condensing) | |
| Max working altitude | <3000 m | |
| Cooling concept of dc hatch | HVAC | |
| Communication interfaces | RS485, Ethernet, 4G/GPRS | |
| Certificates | UN3536, IEC62619, IEC62477 | |
