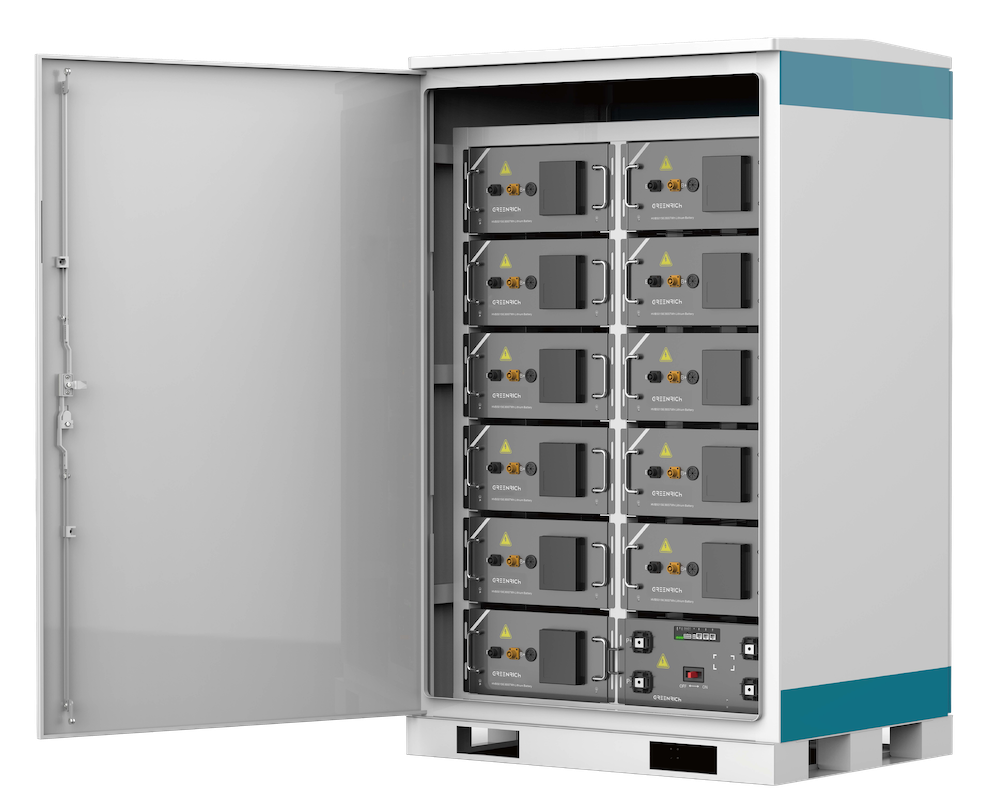

IS001 / IS005
HV Battery Modules
Features
55/88kWh
Capacity
55kW/132kW
Output Power
1.5C
High Discharge Rate
Features
- Dynamic cylindrical cells, superior safety
- Simple system structure, easy set-up & maintenance
- Unique modular design & fexible function configuration
- Easy to install and deploy with large space utilization
- Natural air cooling
Technical Specifications
| Model | IS001‑055 | IS005‑088 |
|---|---|---|
| Battery Type | Li‑ion (LFP) | |
| Nominal Capacity (kWh) | 55 | 88 |
| Max. Output Power (kW) | 81.62 | 132.12 |
| Max. Discharge C‑rate | 1.5 | 1.5 |
| Depth of Discharge | 100% | 100% |
| Cycle Life | >6000 | >6000 |
| DC Voltage Range (Vdc) | 510.4 ~ 624.8 | 510.4 ~ 624.8 |
| Max. Discharge Current (A) | 125 | 180 |
| Max. Charge Current (A) | 100 | 120 |
| Working Temperature: Charge (°C) | −10 ~ 55 | −10 ~ 55 |
| Working Temperature: Discharge (°C) | −20 ~ 60 | −20 ~ 60 |
| IP Rating | IP54 | IP54 |
| Altitude (m) | ≤2000 | ≤2000 |
| Humidity (RH) | 0 ~ 95% | 0 ~ 95% |
| Cooling System | air cooling | air cooling |
| Anti‑Corrosion | C3 | C3 |
| Certification | UN38.3 / MSDS / IEC62619 / IEC62368 | |
| Dimension (mm, W×D×H, w/o inverter) | 1130 × 845 × 1815 | |
| Weight | 740 kg | 1000 kg |
